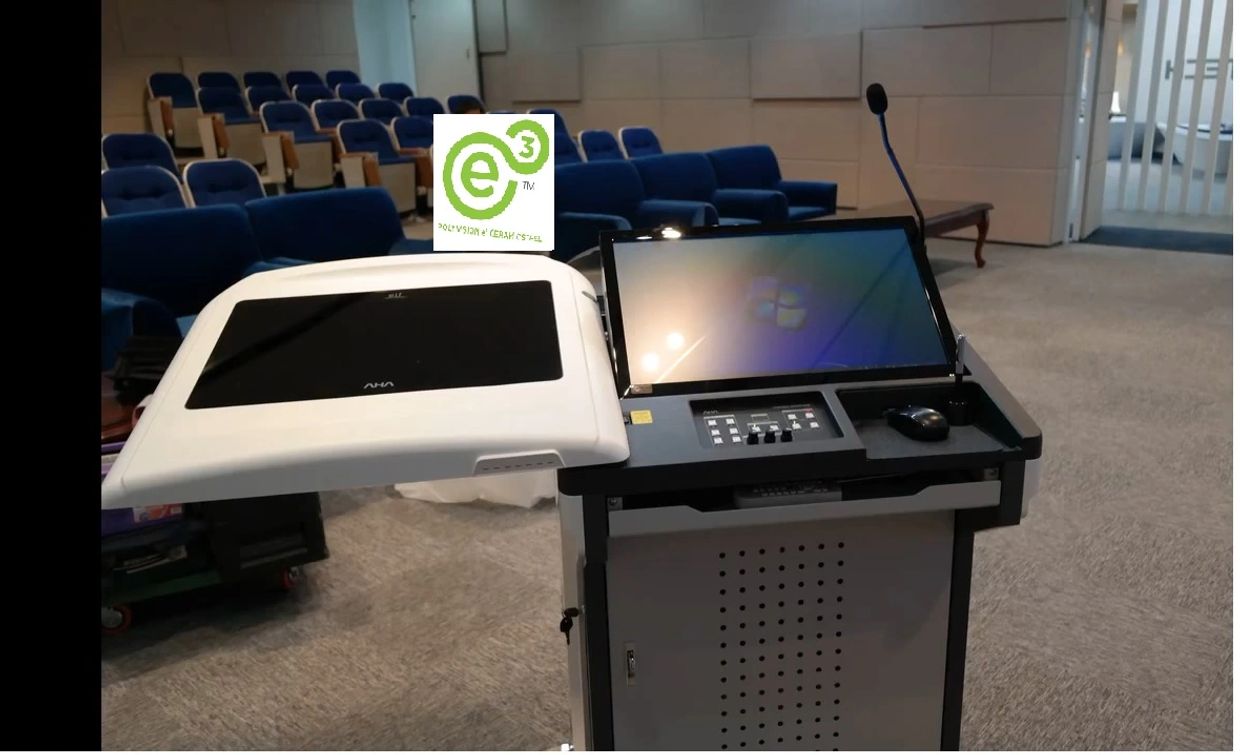

AHA Elf 72LS New
AHA Digital Podium
22”LCD Tablet MonitorAHALTM-222WD( Dual Touch )
LCD
Resolution : 1920 x 1080 ( FULL HD )
View Area : 477(H) x 268(V) mm– 22 inch
Luminance, White 250 cd/㎡
Contrast Ratio 1000:1 (typ.)
Viewing Angle 160˚ (H/V)
Lamp Life Time 20,000 Hrs (min)
Tablet
Technology Electromagnetic Resonance
Detectable Height 3~10 mm
Position Report Rate 138pps
Pressure Resolution 1024 Level
Body
Sliding cover Opening/Closing the cover easily
Soft wheels Moving podium with convenience
Adjusing Monitor Angle system (Actuator) User can set monitor angle as user's want
Dimension 659(W) x 1,130(H) x 750(D)
Multimedia Controller
UHD HDMI Inputs : 3 HDMI INPUT ( HDMI 1.4/HDCP1.2 Compliant)
UHD HDMI Outputs 3 HDMI OUTPUT ( HDMI 1.4/HDCP1.2 Compliant)
VGA Out 1 ( D-SUB 15P)
Max. Resolution 3840 X 2160 (upto UHD)
Pixel Frequency 440MHz
Composite Inputs Video X 2
Composite Output Video X 1
Bandwidth 100MHz
Return loss -30dB; 5MHz
Switch Control Ports X 4
Screen / ELE Control Ports X 2
Screen Relay Controls X 2
LAN Selector 2 Input, 1 Output
USB Selector 2 Input, 1 Output
AMP Control Port X 1 ( When using the external amplifire(AMX3030D) )
RMS Control Module X 1
IR Control Port X 2
Serial RS-232 Ports X 4
Power(Adaptor) 12V, 4
Weight 1Kg
Laptop Interface Module :
HDMI x1 / Tablet USB x1 / USBx2 /Sound Inx2 /LAN x1/ RCA Jack(3P) / Power x1
Gooseneck Microphone
Polar Pattern Cardioid
Frequency Response 150Hz ~ 17KHz
Sensitivity (0dB=1V/1Pa, 1KHz) -46dB
Output Impedance 200 ohm Balanced
Weight (g) 200
Power Distributor
AC Outputs 5CH (MAX 150W)
DC Outputs 12V/4A x 4, 9V/3A x1, 5V/1A x1
Input AC Input 100 - 240V,50-60Hz 10A
Dimensions 480(W) x 88(H) x 298(D) mm
Weight 5kgs
