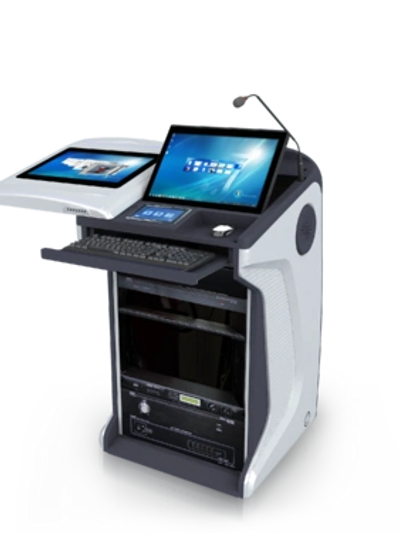

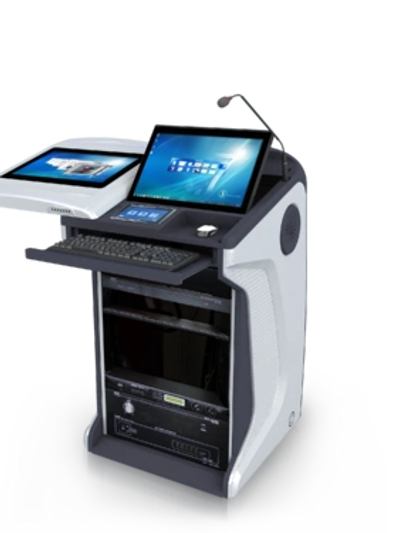

Voitto ACE 72A Electronic Lectern Podium

---

ACE 72A Additional Information

Introducing the Voitto ACE 72A, a state-of-the-art electronic lectern podium designed for modern presentations. This innovative Dual Monitor Podium features a 22” LED Tablet Monitor with dual touch capabilities alongside a 22" Non-Touch LED Monitor that conveniently slides under a cover.

**LED Specifications:**

- **Resolution:** 1920 x 1080 (FULL HD)

- **View Area:** 477(H) x 268(V) mm – 22 inch

- **Luminance:** 250 cd/㎡

- **Contrast Ratio:** 1000:1 (typ.)

- **Viewing Angle:** 160˚ (H/V)

- **Lamp Life:** 20,000 Hrs (min)

**Tablet Features:**

- **Technology:** Electromagnetic Resonance

- **Detectable Height:** 3~10 mm

- **Position Report Rate:** 138pps

- **Pressure Resolution:** 1024 Level

**Capacitive Touch Technology:**

- **Type:** Projected Capacitive

- **Detected Object:** Fingers or Conductive material

- **Touch Points:** 10 Points

The sub-monitor is a non-tablet 22-inch wide display, making the Voitto ACE 72A an excellent choice for any presentation setting.

**Power Supply:**

- **DC Adapter (model: CGSW-1203000):** AC100-240V 1.5A 50-60HZ / DC12V 3000mA

**Body Features:**

- **Sliding Cover:** Allows for easy opening and closing.

- **Soft Wheels:** For convenient movement of the podium.

- **Adjustable Monitor Angle System (Actuator):** Users can set the monitor angle to their preference.

- **Dimensions:** 659(W) x 1,130(H) x 750(D)

**Multimedia Controller Specifications:**

- **UHD HDMI Inputs:** 3 (HDMI 1.4/HDCP1.2 Compliant)

- **UHD HDMI Outputs:** 3 (HDMI 1.4/HDCP1.2 Compliant)

- **VGA Out:** 1 (D-SUB 15P)

- **Max. Resolution:** 3840 X 2160 (up to UHD)

- **Pixel Frequency:** 440MHz

- **Composite Inputs:** Video X 2

- **Composite Output:** Video X 1

- **Bandwidth:** 100MHz

**Sound Specifications:**

- **Speaker Output:** 40W 4Ω (20W + 20W) Stereo

- **Inputs:** x 3 (Ø 5.5 Mono Jack), x 2 (RCA Stereo JACK L/R), x 1 (Ø 3.5 Stereo Jack)

- **Dimensions:** 88(H) x 482(W) x 223(D) mm

- **Weight:** 4.8 Kg

**Wireless Microphone Features:**

- **Frequency Ranges:** 925.0MHz ~ 932.0MHz

- **Type:** Hand and Belt

- **Simultaneous Channels:** 38CH

**Gooseneck Microphone Specifications:**

- **Polar Pattern:** Cardioid

- **Frequency Response:** 150Hz ~ 17KHz

**7” LCD Controller Details:**

- **Resolution:** 800 x 480

- **Interface:** RS-232

- **Touch Type:** Resistive

In summary, the Voitto ACE 72A electronic lectern podium is a versatile and efficient solution for any presenter looking to elevate their presentation experience.
